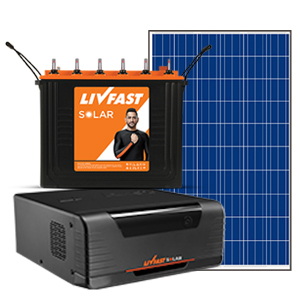

Description Livfast Solar Inverter LFS SO1850 Livfast Solar Hybrid UPS provides power from solar battery and grid as per the load profile. It has the highest rated solar charge controller which extracts maximum power from solar modules and reduces electricity bills. Specifications System Rating – 1500VA Nominal Battery Voltage (Vdc) – 24V Ouput Waveform – Pure Sine Wave Switching Element – MOSFET Dimensions (LxWxH) – 363 x 398 x 251 mm Net Weight (Kg) – 15 Livfast Solar Battery LFS 5150HP Livfast Solar Batteries are C10 rated deep cycle batteries. Innovative Super Tuff 3D design and extra thick tubular plates give longer backup & battery life. Specification Nominal Voltage (V) – 12 Capacity @ C10 (Ah) – 150 Battery Weight with Acid ± 3% (Kg) – 58.1 Dimension (LxWxH) – 505x190x430 mm Free Replacement (Months) – 0-36 Pro Rata Warranty (Months) – 37 – 60 Note – Battery capacity are C10 upto 1.80 v.p.c at 27°C  Livfast Solar Panel LFV12V160 Livfast Solar Panels are polycrystalline PV panels, IEC compliant having range from 40 W – 325 W. Our Panels are ideally suited for rooftop and agricultural applications. Specifications Power (pm) in Watts (Nominal) – 160 No. of Cells – 36 Rated Module Voltage – 12 Voltage at Maximum Power (Vmp) in Volts – 18.2 Current at Maximum Power (Imp) in Amps – 8.79 Open Circuit Voltage (Voc) in Volts – 22.2 Short Circuit Current (Isc) in Amps – 9.34 Maximum System Voltage (VDC)- 1000 Module Efficiency ŋ (%) – >16%
